    • 3D StandardThis is a standard 3D Layer
    3D HDR This is a Layer using the High Dynamic Range engine mode

    3D Layers

    3D Layers allow you to access the Ventuz Hierarchy workflow, and thus the Hierarchy Editor in Ventuz.

    3D layers are 3D hierarchies which can be combined with 2D layers and which support the addition of Post Processing Effects, also called IPP Effects. These IPP Effects will affect all the elements inside the 3D Layer as a whole, therefore if you want to apply different effects to different part of your scene, you have to place these elements into separate 3D Layers.

    To access the Ventuz Hierarchy Editor for each 3D Layer, click the Edit Icon of the layer you want to edit. Please refer to the Hierarchy Editor section of this User Guide for further reference.

    Ventuz 3D layers have 3 different render engines or modes:

    All layers in Ventuz feature certain properties to control how layers are sized, composited, used masks, applied effects and so on, regardless if they are 2D, 3D or other types of layers. You can find an in-depth description of all these options on this page, for references about the different types of layers in Ventuz and their specific properties, check 2D Layers, 3D Layers and Other layers.

    Blending

    Blending operations, including modes, opacity and masking, can be switched ON or OFF for each individual layer by left-clicking close to the Blending caption. If the check mark appears, the blending operation, including opacity, mode and mask, is calculated for the current layer. If the check mark does not appear in front of the Blending options, the blending operations are not calculated.

    As with all Layer Properties, in order to expand the Blending Options, click on the little arrow. A dropdown list of the supported blending modes will appear:

    Blending

    With the Blending Modes you control how the pixel values of the current layer are combined with those of the layers rendered before, i.e. the layers which are above the current layer. The bottom one is always in front of the rest.

    Mode

    Normal: The default Blending mode. When selected, only Layer Opacity settings are taken into account to composite the layer.

    Darken: Compares the color information in both the current and the layer below and selects the darker pixels. Pixels lighter than the blend color are replaced, and pixels darker than the blend color do not change.

    Multiply: Checks the color information and multiplies its values in both the upper foreground and the background layer. The resulting color is always a darker color. Multiplying any color with black produces black. Multiplying any color with white leaves the color unchanged. When you’re blending with a color other than black or white, successive blends produce progressively darker colors. The effect is similar to drawing on the image with multiple marking pens.

    Color Burn: Looks at the color information in each channel and darkens the base color to reflect the blend color by increasing the contrast between the two. Blending with white produces no change.

    Linear Burn: Looks at the color information in each channel and darkens the base color to reflect the blend color by decreasing the brightness. Blending with white produces no change.

    Darker Color: Compares the total of all channel values for the blend and base color and displays the lower value color. Darker Color does not produce a third color, which can result from the Darken blend because it chooses the lowest channel values from both the base and the blend color to create the resulting color.

    Lighten: Looks at the color information in each channel and selects the base or blend color —whichever is lighter— as the resulting color. Pixels darker than the blend color are replaced, and pixels lighter than the blend color do not change.

    Screen: Looks at each channel’s color information and multiplies the inverse of the blend and base colors. The resulting color is always a lighter color. Screening with black leaves the color unchanged. Screening with white produces white. The effect is similar to projecting multiple photographic slides on top of each other.

    Color Dodge: Looks at the color information in each channel and brightens the base color to reflect the blend color by decreasing contrast between the two. Blending with black produces no change.

    Linear Dodge (Add): Looks at the color information in each channel and brightens the base color to reflect the blend color by decreasing contrast between the two. Blending with black produces no change.

    Lighter Color: Compares the total of all channel values for the blend and base color and displays the higher value color. Lighter Color does not produce a third color, which can result from the Lighten blend because it chooses the highest channel values from both the base and blend color to create the resulting color.

    Overlay: Multiplies or screens the colors, depending on the base color. Patterns or color overlays the existing pixels while preserving the highlights and shadows of the base color. The base color is not replaced but mixed with the blending color to reflect the lightness or darkness of the original color.

    Soft Light: Darkens or lightens the colors, depending on the blending color. The effect is similar to shining a diffused spotlight on the image. If the blend color (light source) is lighter than 50% gray, the image is lightened as if it were dodged. If the blend color is darker than 50% gray, the image is darkened as if it were burned in. Blending with pure black or white produces a distinctly darker or lighter area, but does not result in pure black or white.

    Hard Light: Multiplies or screens the colors, depending on the blending color. The effect is similar to shining a harsh spotlight on the image. If the blend color (light source) is lighter than 50% gray, the image is lightened, as if it were screened. This is useful for adding highlights to an image. If the blend color is darker than 50% gray, the image is darkened, as if it were multiplied. This is useful for adding shadows to an image. Blending with pure black or white results in pure black or white.

    Vivid Light: Burns or dodges the colors by increasing or decreasing the contrast, depending on the blend color. If the blend color (light source) is lighter than 50% gray, the image is lightened by decreasing the contrast. If the blend color is darker than 50% gray, the image is darkened by increasing the contrast.

    Pin Light: Replaces the colors, depending on the blend color. If the blend color (light source) is lighter than 50% gray, pixels darker than the blend color are replaced, and pixels lighter than the blend color do not change. If the blend color is darker than 50% gray, pixels lighter than the blend color are replaced, and pixels darker than the blend color do not change. This is useful for adding special effects to an image.

    Hard Mix: Adds the red, green and blue channel values of the blend color to the RGB values of the base color. If the resulting sum for a channel is 255 or greater, it receives a value of 255; if less than 255, a value of 0. Therefore, all blended pixels have red, green, and blue channel values of either 0 or 255. This changes all pixels to primary additive colors (red, green, or blue), white, or black.

    Difference: Looks at the color information in each channel and subtracts either the blend color from the base color or the base color from the blend color, depending on which has the greater brightness value. Blending with white inverts the base color values; blending with black produces no change.

    Exclusion: Creates an effect similar to but lower in contrast than the Difference mode. Blending with white inverts the base color values. Blending with black produces no change.

    Subtract: Looks at the color information in each channel and subtracts the blend color from the base color. In 8- and 16-bit images, any resulting negative values are clipped to zero.

    Divide: Looks at the color information in each channel and divides the blend color from the base color.

    Hue: Keeps the Hue of the layer, and blends the luminance and saturation of the underlying layers (you basically get the image from the lower layer with the colors of the top layer).

    Saturation: Keeps the saturation of the layer, and blends the luminosity and hue from the underlying layers—where colors from the active layer are saturated, they will appear using the luminosity and hue from the underlying layers.

    Color: Keeps the color of the layer, and blends the hue and saturation (the color) of the active layer with the luminance of the lower layers.

    Luminosity: Keeps the luminance of the layer, and blends it with hue and saturation of the layers below.

    Linear Light: Uses a combination of the Linear Dodge blend mode on the lighter pixels, and the Linear Burn blend mode on the darker pixels.

    Pass Through: Is the default Blend Mode for Layer Groups. It allows any adjustments to layers inside the group to affect layers below it. Ventuz takes all the layers inside the Group and performs the blending operations in the usual order - if you change this mode you are basically changing the order in which the layers are processed - all layers inside the group are blended first and the resulting composite is blended with the layers below with the selected blending mode for the group.

    Blend mode Pass Trough applies only to Layer Groups!

    Texture is not pre-multiplied: This setting forces an internal pre-multiplication of textures in certain image formats, mainly DDS when it is difficult to automatically decide if the file is pre-multiplied or not.

    Opacity

    Control the overall Opacity of the Layer. This value is already exposed to the Layer Level.

    Blocked

    This checkbox controls if the Layer Blending mode operation is performed or not, the main difference with switching OFF Blending operations is that the property can be bound in the Content Editor, and therefore can be used to optimize performance in complex scenes.

    BlockedOnFullTransparency

    This checkbox is used to optimize layer performance when animating Layer Opacity, if opacity is set to 0%, and is, therefore, invisible, Ventuz will minimize any calculations pertaining to this layer to improve performance. If you Uncheck BlockedOnFullTransparency to still have touch interactions possible. For instance, you could have a Transparent 2D Layer which shrunk in size and can still send touch information.

    Layer Mask

    Layer Masks allow isolating certain parts of the layer to be used for the final composite. In general, Masks use the color or alpha information to decide which image pixels will be transparent, translucent or opaque.

    • Pixels which are 100% white in the selected channel will result in opaque areas of the layer.
    • On the contrary, pixels which are 100% black in the selected mask channel will be considered as transparent and therefore these areas of the current layer won't be shown in the final composite.
    • All the gray tones between black and white in the selected mask channel will result in different levels of translucency in the areas affected.

    Ventuz features three type of masks by default: Mask, Vignette and Border. You can add as many MaskStages as you want.

    You add a LayerMask if you click Click  on the [+] Mask like shown on the Screenshot, and select Mask or any type of Mask Vignette / Mask Border from the dropdown menu.

    Mask

    Mask Property uses a texture source as the mask. When adding a mask, a new thumbnail will show the Mask appearance. Click on the Mask or click the triangle in the front to bring up the properties for the selected Layer Mask.

    Texture Source

    Each one of the Texture Source property groups provide a texture to the containing node that is used in one way or another. This page gives an overview of the different types of property groups.

    Texture Loader

    The Texture Loader directly loads a texture of any supported type from file and provides it as a texture to the containing node. The File property changes the loaded image. The Hint property will change how the loaded file is handled internally while the texture is generated. See Texture Loader Node for more information on the Gamma and Alpha Hints used when loading a texture.

    The Presets of this Node are specific internal Texture Files that are always available in the Ventuz Runtime.

    Texture Property

    The Texture Property Property Group provides only an Input for any Texture coming from the scenes logic, e.g. a Texture Loader Node. This is necessary for some source types like movies but may also be useful whenever you need to apply some logic to loaded textures before applying them to objects. The Presets generate the according Content Node together with the Property Group and bind its Input Property to that new node.

    1D Gradient

    The 1D Gradient generates a linear gradient. It can be edited using the Gradient Input -  clicking on the down arrow on the left of the property will open up the Gradient Editor. The Vertical flag changes the alignment of the generated 1D gradient. You can also use a String node to Copy&Paste gradients from or into a gradient property, simply bind the

    SVG Loader and SVG Text

    The SVG Loader and SVG Text Property Groups rasterize an SVG file and provide the rasterized graphic. See the SVG Loader Node for more information.

    Texture Array Loaders

    The Texture Array Loaders are able to generate a List of Textures instead of only a single texture. This can be used by a Material with a Flipbook Control to display one of the loaded textures after another. Or you can use it with a Particle System to display a different texture for each particle using the Animation attribute of a particle.

    Flipbook Loader

    The Flipbook Loader is able to generate an Array of Textures from the given source file. This can either be a Movie file or an Image Sequence. For best results and performance, consider the following:

    • The Movie file is loaded into the GPU memory completely instead of streaming only the needed portions like the Movie Clip Node. So always use small movie files. Also remember that compression does not change the size on the GPU since it will be decoded before.
    • The Movie file should not use lossy compression to make sure each frame looks fine and can be used on its own. E.g. the ​Apple Animation Codec for Quicktime files could be used for that.
    • An Image sequence can be loaded by selecting one of the images of the sequence. They have to have the same names with an index at the end of the name. For example PictureXXX.png with XXX being the index of that image.
    • The Images in the given sequence need to be of the same dimensions. Otherwise the GPU cannot create a Texture Array of the given source files.
    Strip Loader

    Similar to the Flipbook Loader the Strip Loader will create an Array of Textures. This texture loader divides a single Image into evenly sized textures. You can define the number of textures with the CountX and Y properties and remove single slots at the end with the Reduce property. The frames are read line by line, so the first frame is at the top-left slot and the second frame is at the slot right to that.

    It is used similarly to the 2D Strip Mapper of the Material Node. The difference is that the Strip Loader can be used by the Particle System to use different portions of an Image for each particle.

    QR Code Generator

    The QR Code node generates a QR Texture from the given text input. It can also be loaded inside a Material Stage.

    In the Property Editor are more options to further change the rendering of the QR Code.

    The Pixels per module property determines how much pixel will be used to render the module.

    With the ECC Level (Error correction capability) it is possible to change the amount of how much error the QR Code can handle inside the texture before the generated code is not readable anymore.

    ECC Level

    • Level L ~7%
    • Level M ~15%
    • Level Q ~25%
    • Level H ~30%

    The Dark and White color property lets the User change the corresponding color of the generated QR Texture.

    The Text property is the input for the the node to generate given text as a QR Code.

    Mask Properties

    For any of the above loaders, you can adjust the Amount which controls the Mask Opacity, the Sampler where you can select the filtering to be Trilinear and Adress the Border behavior. Click the Sampler and the Dropdown Menu offers you following Options for the Border Behavior:

    Black: The pixels outside the area covered by the mask are turned black, meaning that there is no tiling.

    White: The pixels outside the area covered by the mask are turned white, meaning that the area outside the original mask image is totally opaque.

    Clamp: The pixels outside the area covered by the mask will repeat endlessly the same values as the pixels in the original image borders.

    Wrap: The pixels outside the area covered by the mask are repeated or tiled as they were in the original mask image.

    Mirror: The pixels outside the area covered by the mask are repeated or tiled as they were in the original mask image, but inverted like a mirror effect.

    With the Channel Drop Down Menu you can select which channel should be taken for masking. The Luma (L) is the default and uses the external image Luminance as a mask, it converts the image internally into a Grayscale Image. You can select an explicit channel like R,G,B or take the Alpha as the Making source. With the Invert the source image or selected channel gets inverted.

    You can Offset X/Y, Scale X/Y and change the Rotation of the mask. New pixel values are interpolated using the options selected in the Sampler dropdown menu.

    The Lift, Gain and Offset can be used to do a color grading for the Mask. The values are conformed with the Standards used in the cinematography. Lift can lift up the lower colors, while it clamps also the lower color area. E.g. if you lift a dark image, lower colors gets cut off, instead of starting at 0-255, it will start with 30-255. Gain boosts the colors in the whole range, while bright pixels may also clip at 255. Offset moves the colors in respect to each other color values. It behaves like a shifting.

    Random will position the Image randomly on screen and the amount of this randomness can be controlled with the Random X/Y. The Image will be positioned to a different position for every Tick, therefore you can not control the speed.

    Mask Vignette

    Mask Vignette can be used to darken the corners of the Layer. You can control the Radius and Fuzz to change the appearance of the vignette. Fuzz will change the blending between the dark vignette and the visible area. You can reposition with the Center X/Y values and also use Straight X/Y to change the shape of the vignette. The Straight can be used to shape the circle like vignette to a rounded rectangular shape. With the AspectStretch and Aspect value you squeeze or stretch the vignette.

    Horizontal Vignette and Vertical Vignette offer the same controls as the Standard Mask. They are more like presets and have just the properties adjusted, so that either a Horizontal- or Vertical Vignette appears. The adjusted Values, in this case, are Radius, Fuzz and depending on Straight X or Straight Y.

    Mask Border

    Mask Border creates a rectangular border vignette which can be controlled and adjusted the same way as the Standard Vignette. The main difference is the Border X/Y controls. These control the border width. You will notice that you control the rounding of the border with the Radius value.

    Round 2% and Square 2% are again just like presets, which have the Border X/Y set at 2% and either Radius and Fuzz set at a value or not.

    Layout

    The Layout parameters adjust the layer size, aspect and position. The layout can work in different ways, also called modes, each features its own properties.

    Full Size keeps the Layer size always to the project settings. Switch to the Percentage if you want to adjust the Layer Size and Position in percent. For example: This mode is the fastest way to bring a Layer on-screen and off-screen, since you just need to bind the X/Y values, and animate them.

    Pixels will switch the layer to be pixel accurate. Per default, it will use the Project Settings. If you started your Project in FullHD it will reflect 1920x1080. The X/Y changes the on-screen position in Pixels, keep in mind that the position is dependent on the Relation Alignment. As soon as you change the Width/Height the layer will have the set size. In the Relation dropdown you can define in which relation the pixel will be. The Relation - Layer will use the pixelspace defined in the layer itself OR if the layer is inside a Layer Group and the Layer Group has a different pixelspace it will be in relation to that Layer Group settings. Relation - Project will use the defined Format of the Project Settings. E.g. your screen is set to 1920x1080 and you resize the Renderer View the layer will still render as if it will be displayed in FullHD. Resizing the Renderer View will not affect the displayed size of your content in this case. With the Relation - Alignment settings you change the alignment of your layer which also affects the positioning values.

    Aspect can be used to redefine the aspect of the Layer independently of the Format which you set in the Project Properties.

    Offscreen Render Target renders the whole layer to an internal texture which you can access in the Layer - Output Properties. With the Size dropdown menu you can choose if you want to render the layer internally in Full- Half- or Quater- size. For example a 1920x1080px Layer will be 960x540px if you select Half size here. You can also adjust the internal size manually (Manual). Ventuz has some Presets, e.g. 256x256, 512x512, 1024x1024px ..., and so on. As soon as you select any manual size, you can change these values with the Width/Height to suit your needs. Per default the RenderMode is set to Always which renders the Offscreen Render Target in every frame, you can switch to Render Once, so that the Offscreen Render Target is rendered only one time. You can trigger the RenderNow to have the Offscreen Render Target rendered again. The TouchEnabled property specifies if this Layer should be taken into account by the Touch Input Processing. The only Option left is the MipMaps. If enabled the Layer will automatically create MipMaps from its texture. It consumes some performance but will enhance the quality of the Layer if scaled down.

    Effects

    For every layer, you can apply different kinds of effects. You can Group effects by creating Effect Groups and assigning individual Blendings and Masks.

    Margin will be mostly required if you apply the dropshadow or blur effect. The Margin, which is expressed in percentage relative to the original layer size, adds a border around a nonfull-size layer. That is especially required for effects that affect a greater area than the layer itself.

    Blending

    Uses the same available modes like for the layer blend modes. Please see Blending modes for layers.

    Mask

    Uses the same available masks like for the layer masks - the exception is the additional mask self-property. Please see the Layer Masks for an overall detailed explanation.

    Mask Self

    Mask Self masks the applied effect using the Layer Color information. It renders the effect and applies the Layer itself on top of it. This can be greatly seen with the Crashzoom effect and enabled Mask Self:

    If you enable the Show Effect, you will see only the effect and the applied Mask Self is ignored then.

    Effect

    Click  the [+] Effect and add any of the effects listed below. Keep in mind that you can Group Effects! You can change the order of the effect or effect group the same way like you would do with the mask layers - simply click the arrow next to the fx stage or the cross to delete it.

    For effect stages you can clone or clone with bindings.To do so Hold Right Click Hold  on an effect stage for a second and a menu with these options will show up.

    You can collapse or unfold effect properties by simply Right Click click  an effect stage.

    Effect Group

    Creates a group of effects that will be applied together at once. It works exactly the same as the Effects Stack, so the same Effects can be added, moved, deleted and enabled inside of the Group in the same way you operate with the Effects Stack.

    Color Correction

    These effects are used to correct the color values of the layer. The available Color Correction IPP Effects are Grayscale (simple Grayscale effect), Color Grading (a standard color correction effect working with the RGB primaries), Color Correction (similar to Color Grading, but using the HSL/HSV Color model) and Gain (quick Gain color correction effect).

    Please refer to the IPP Color Correction Effects section of the User Manual for additional information.

    Filters

    These effects filter the pixel values of each layer, changing their position, adding new elements, or even changing the opacity.

    The available Filter IPP Effects are:

    Mosaic: Creates a set of tiles colored according to the original color values.

    Blur: Averages each pixel color values with the surrounding pixel values.

    Glare : Creates a smooth halo around the brightest areas of the layer.

    Crash Zoom: Is often called "God Rays".

    RGB Noise: Adds a video noise-like effect.

    Feedback : Creates a trail effect by blending with previous frames.

    Posterize RGB: Rounds up/down pixel color values.

    Posterize HSV: Posterize effect based on the HSV color mode.

    Edge Detection: Detects the outline of shapes in the Layer.

    Color Difference Keyer: Used to Key out the green from "green-screen material" - similar to a Chroma Keyer but uses different math.

    Please refer to the IPP Filter Effects section of the User Manual for additional information.

    Distortion

    These IPP Effects work mostly by changing the relative position of pixels in the layer.

    The available Filter IPP Effects are:

    Drop Shadow: 2D shadow effect based on Layer Alpha.

    Lens Distortion: Replicates artifacts created by lens spatial aberrations.

    Distortion: A standard distortion effect, combining most of the options available in the rest of IPP distortion effects.

    RGB Distortion: Offsets and scales Layer RGB channels individually.

    2D Displacement: Displaces the Layer pixels according to the Luminance information of an external file.

    Noise Distortion: Uses a randomly animated texture to create a fake Noise Displacement effect.

    Polar Distortion: Transposes the x and Y pixel coordinates in the original image to a Polar Coordinate system.

    Kaleidoscope Distortion: Kaleidoscope pattern effect.

    Please refer to the IPP Distortion Effects section of the User Manual for an overall detailed description.

    Layer

    These Properties may vary for the different Layer-types. The most common Property is the Orientation Property which makes it possible to Rotate the Layer in any direction or Mirror and Flip it. There are several Layer-specific properties depending on the Layer Type. The Image Layer has Properties like the TextureFile and TextureHint which controls the Gamma and Alpha loading, while for example the Constant Color Layer has a TextureColor Property. As mentioned before, each Layer Type may vary in the Layer Properties.

    One important property to mention is the RenderFilter. You can chose here to have set All which is the default or explicitly set any of the available filter channels from A - H.

    You can use these filter flags to have the Layer filtered from being shown on the given output. You can select on the Render Setup Editor in the outputs properties to have a RenderFilter applied - its the same range from A - H.

    3D Property

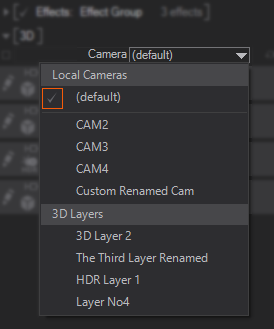

    Camera

    With this drop-down menu you can assign the actual Camera. The options are Local Camera default and all other Cameras available in the actual Selected Layer, if available, other 3D Layers cameras will be listed here - Right under 3D Layers as shown on the screenshot. It is a very powerful feature of Ventuz to use an existing camera from another 3D layer as the actual camera for the selected layer. Whenever you control, change the position or orientation of the assigned camera, the changes will be applied to the 3d layer, where you assigned the camera to.

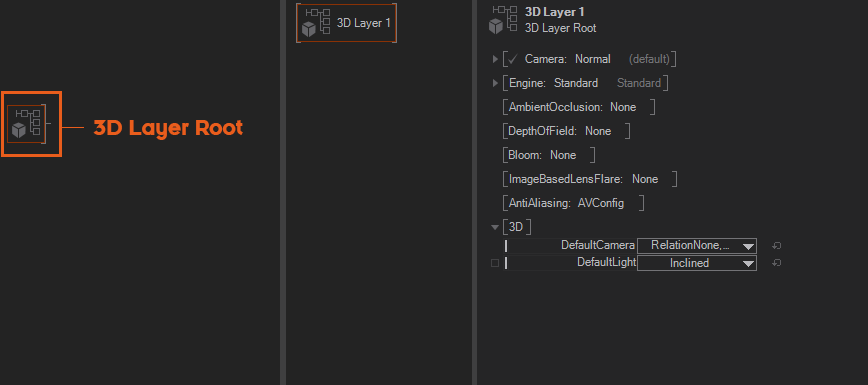

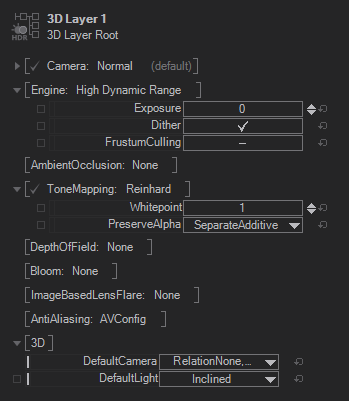

    3D Layer Root Node

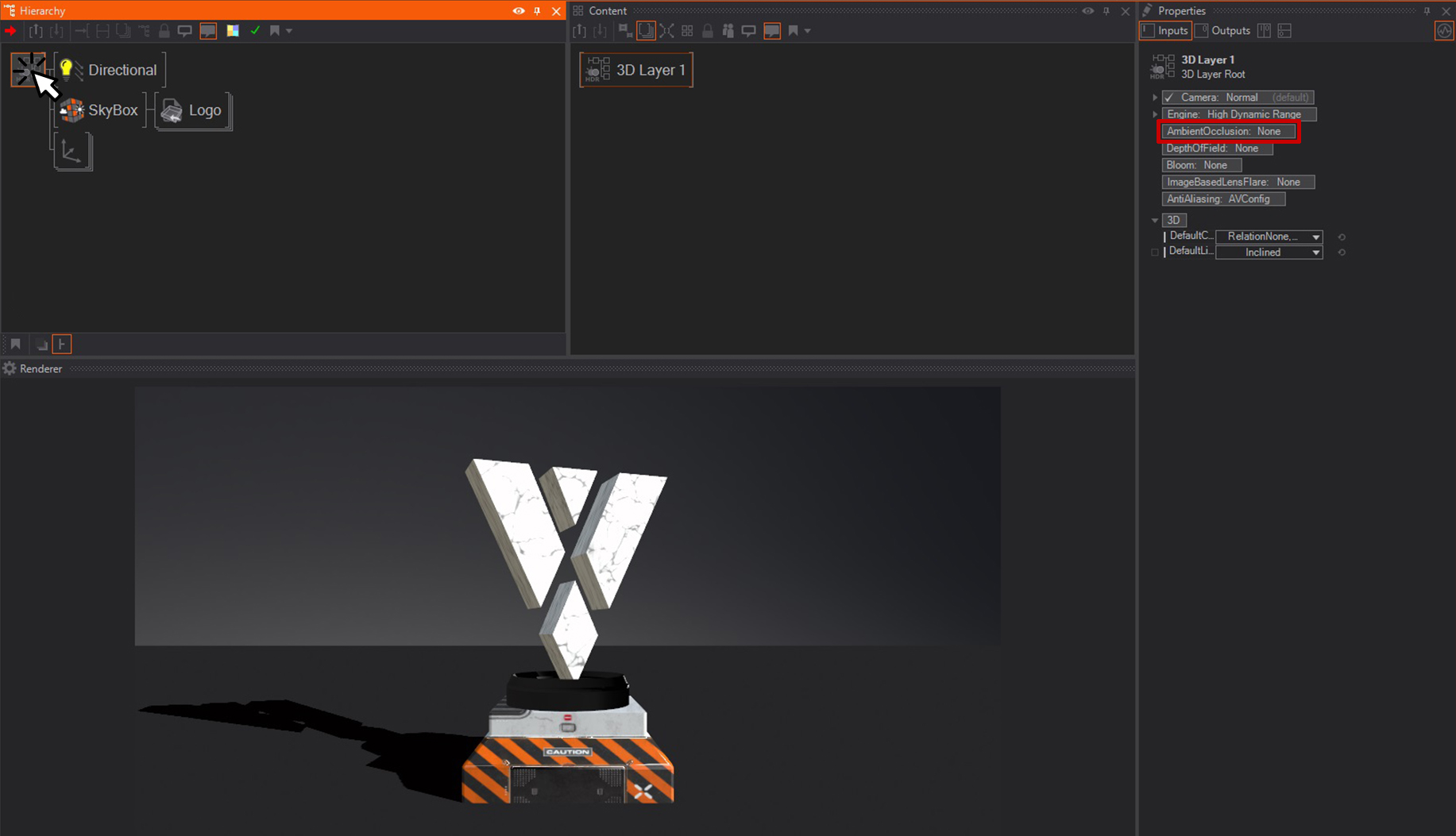

    There are several properties available on the 3D Layer Root when using the Standard Render Engine, HDR engine specific properties will be explained at the end of this section.

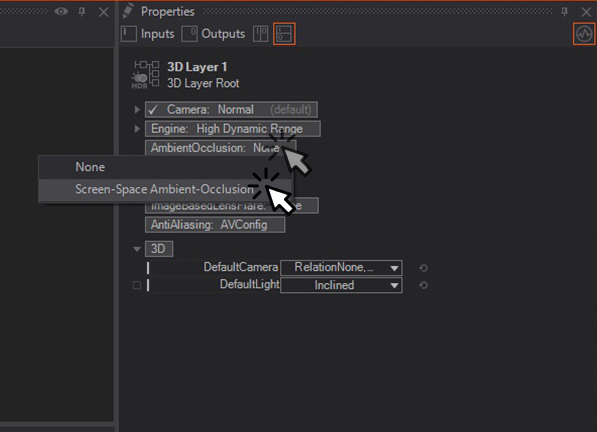

    In order to access the different render modes, click on the Layer Root that appears in the Hierarchy Editor of every 3D Layer. This layer root holds all the render properties of each of the available render mode.

    Keep in mind to unfold or open the properties by right clicking on the properties or click the small triangle in front of the properties.

    The Ventuz engine features some 3D capabilities with effects that cannot be calculated in post-processing because they need to take the 3D information of the scene into account. The available effects are:

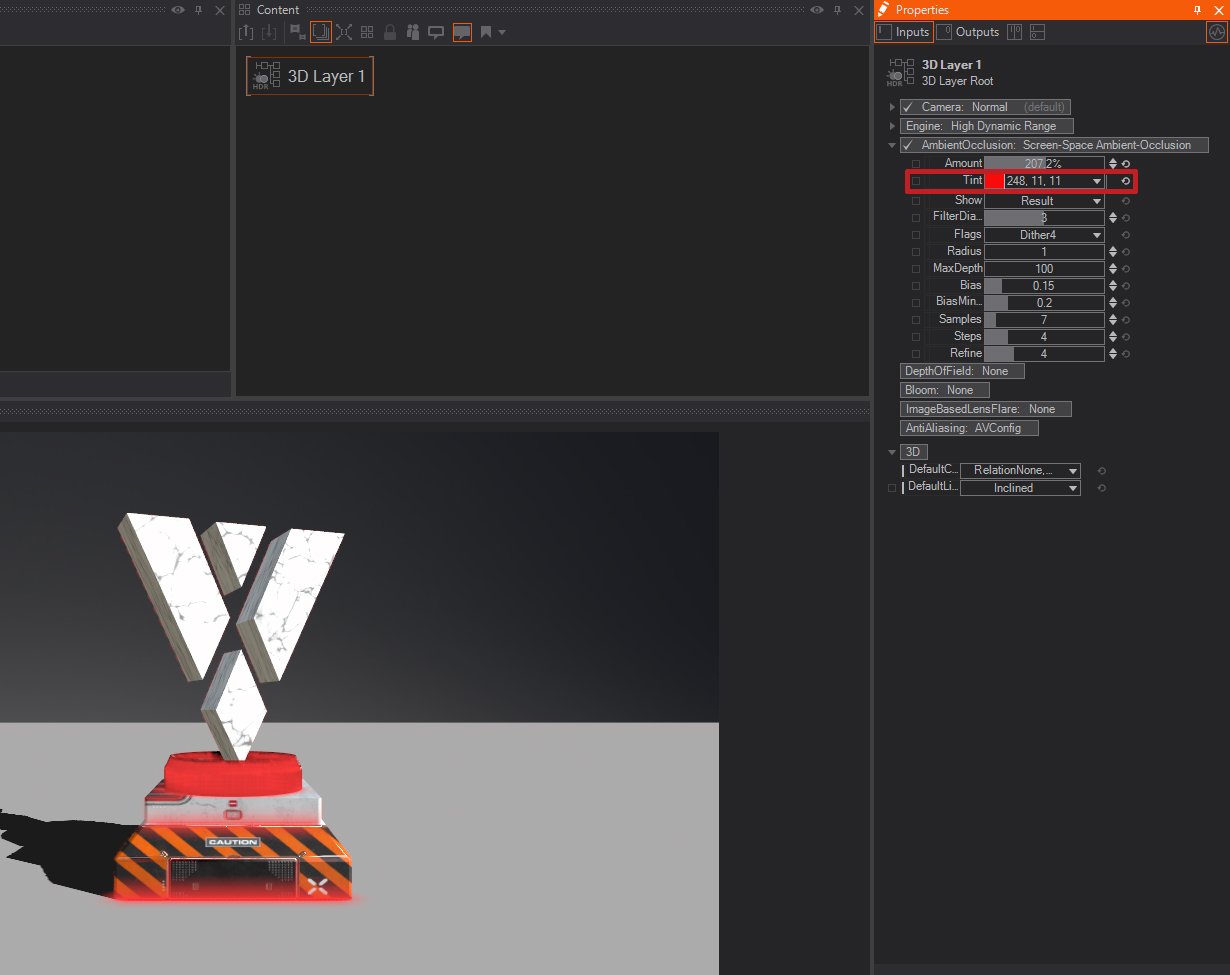

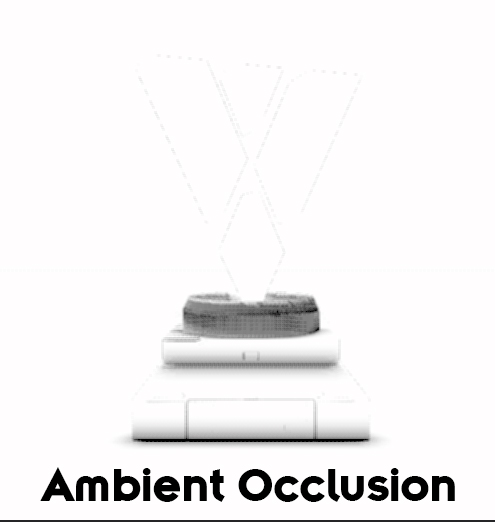

    Ambient Occlusion (SSAO)

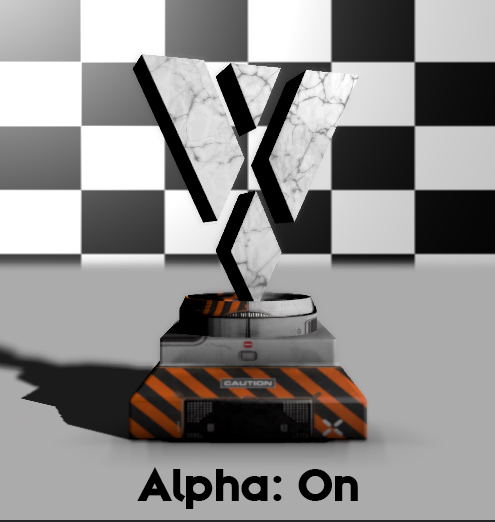

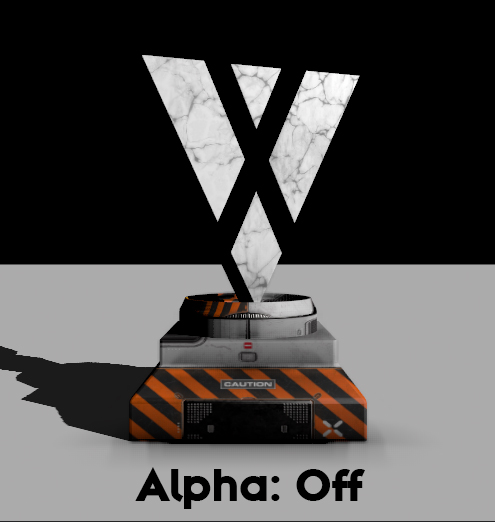

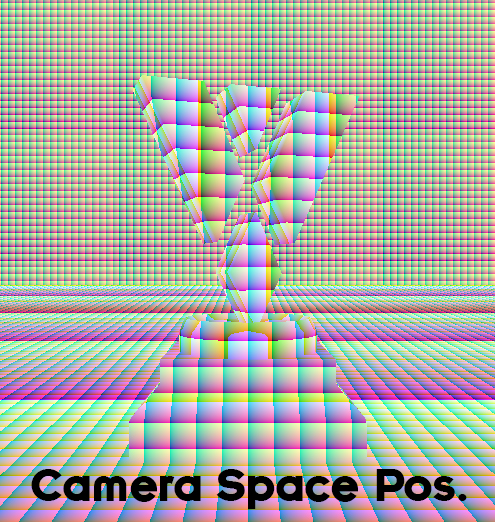

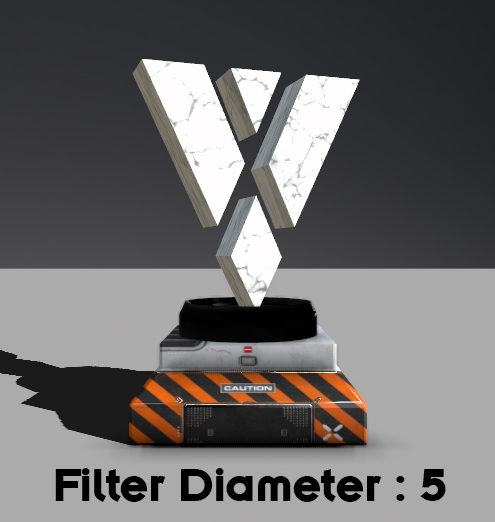

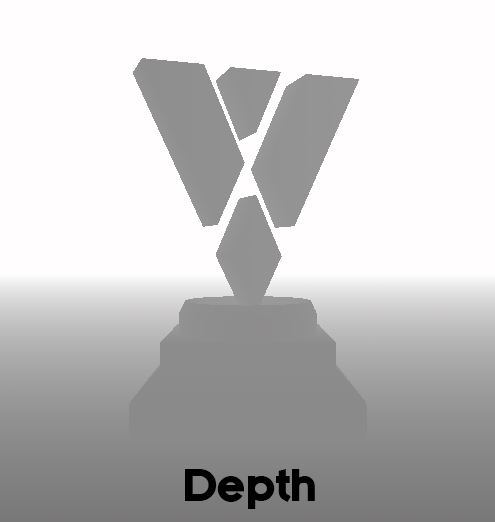

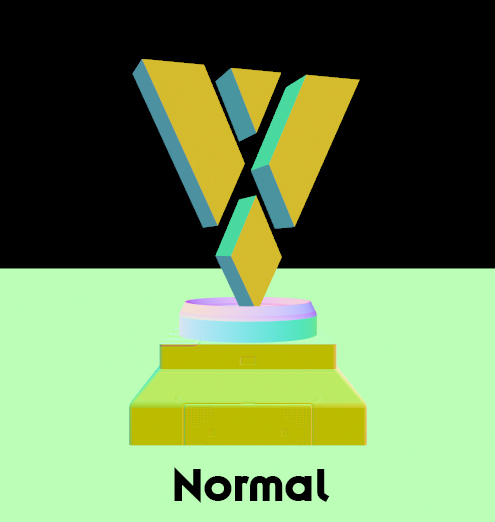

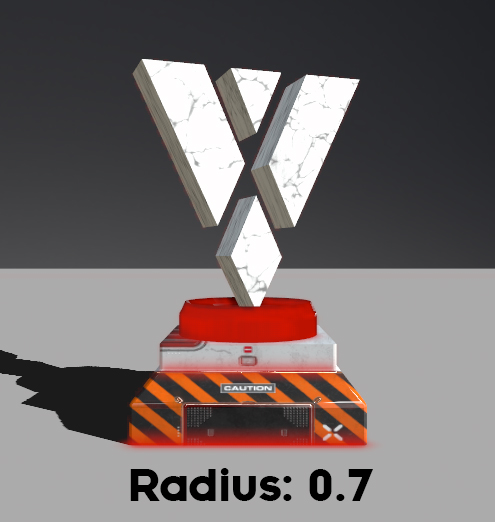

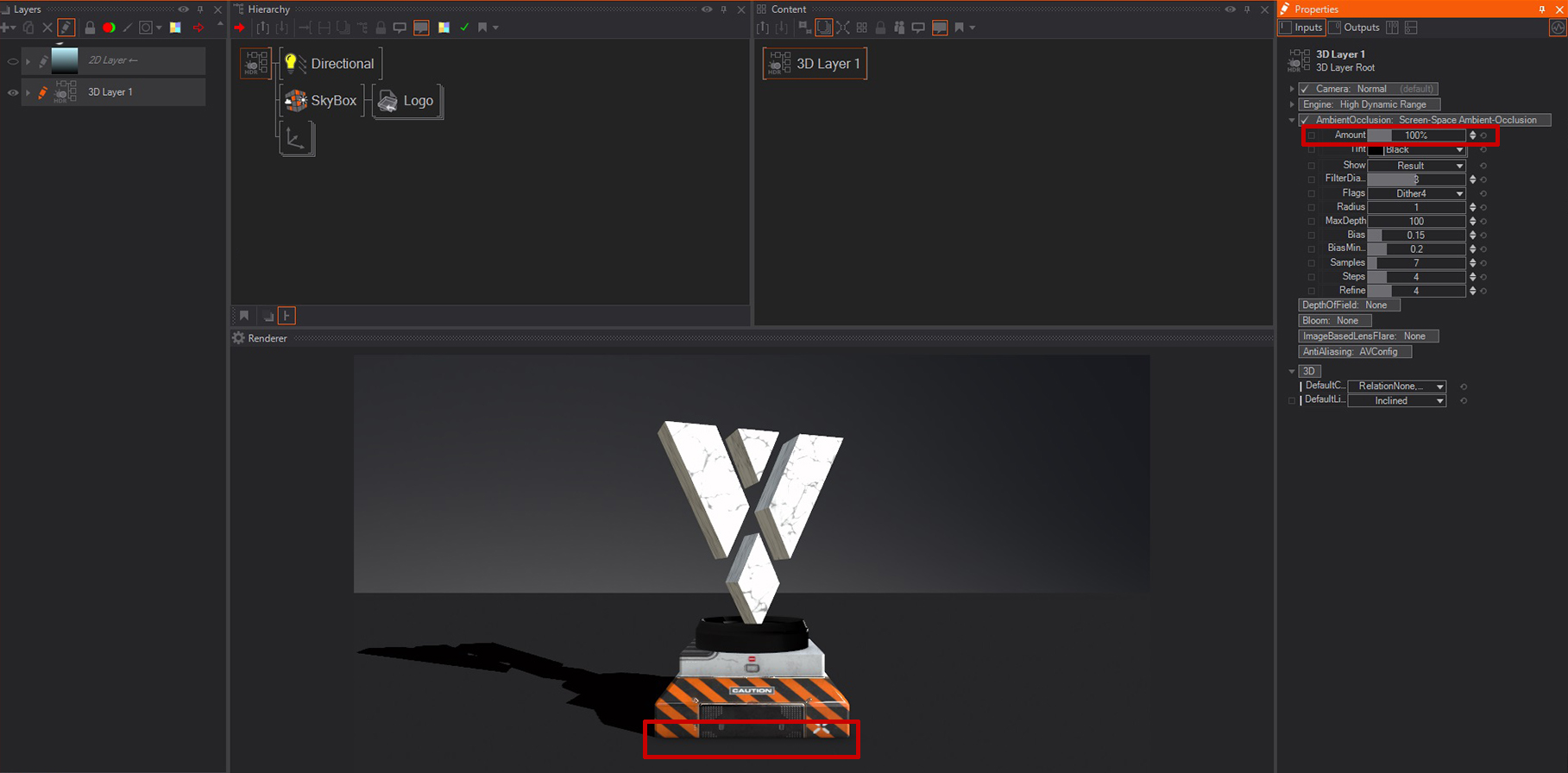

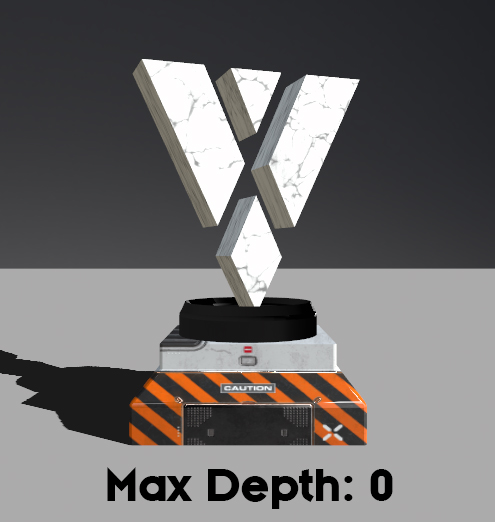

    This enables the Screen-Space Ambient-Occlusion, which is a term for various techniques that try to create the effect of ambient occlusion by looking at the depth-buffer and the normals of all objects on screen and pixel by pixel. All screen-space techniques have the disadvantage that they can't react to stuff that is out of the screen, and they can't handle transparencies, because per pixel on the screen there is only information for the top-most polygon. The specific implementation of SSAO chosen for works like this:
    For every pixel on the screen (the center), we want to know within a given radius the percentage of pixels before the center. Before means before the plane created by the center position and normal. We can't test every pixel, so we cast a few rays from the center (in 2d), as far as the radius (converted from 3D to 2D screen pixels). For each ray, a couple of equal-distance steps are taken to see if the center is occluded. If a wall is hit, the steps are defined in a binary fashion to narrow down the precise position of the first pixel that occludes the center.

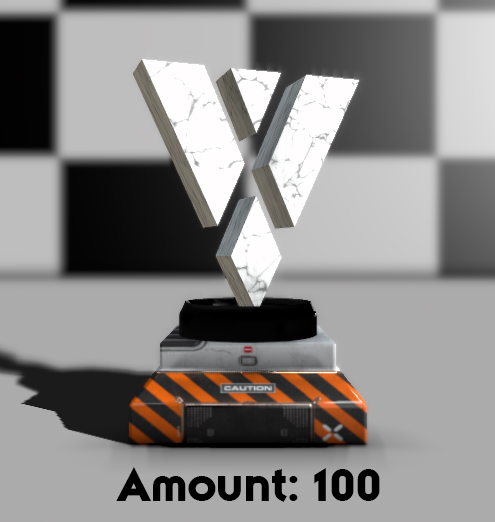

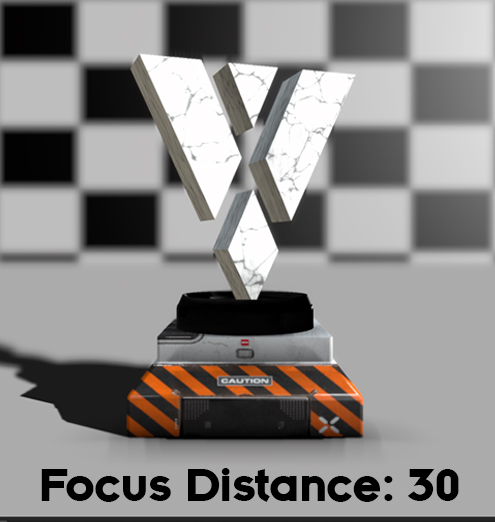

    Depth Of Field

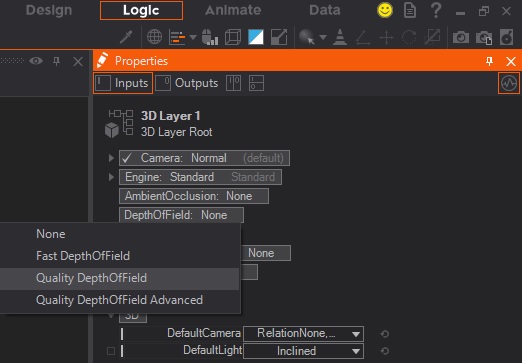

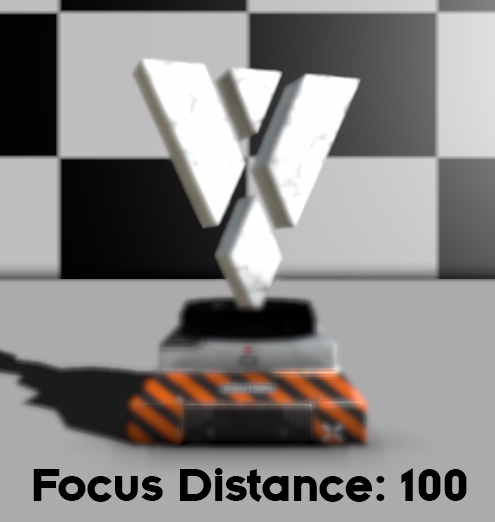

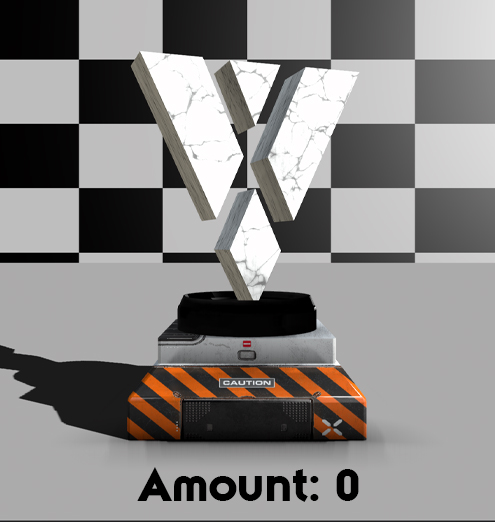

    This enables the Depth of Field effect, an effect that is often used in filmmaking and uses the blurriness of the out of focus elements in the scene to drive viewer's attention to certain parts of the image. The options are None, Fast Depth of Field and Quality Depth of Field - the latter is available in two versions, one with simple settings and one with advanced settings similar to the Fast Depth of Field. Simple Depth of Field is a relatively fast method of calculating DoF, but it comes with a drawback: The quality is very much dependent on proper settings. At this point in time, it mostly is used in small amounts to add realism to 3D scenes. The Quality Depth of Field uses up more perfomance but is easier to control, especially the non-advanced version of it.

    Common Properties:

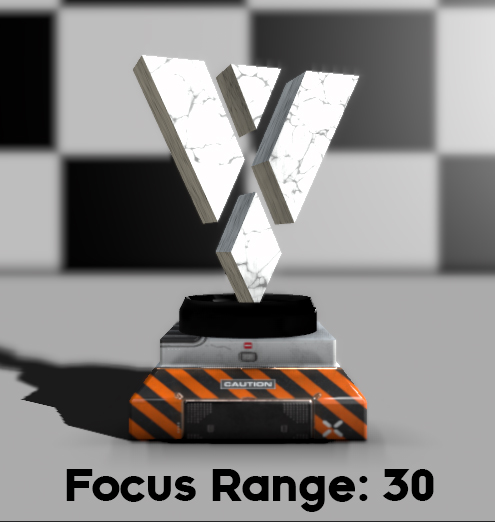

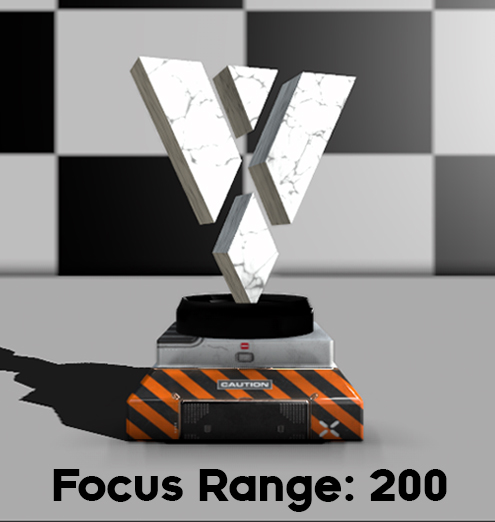

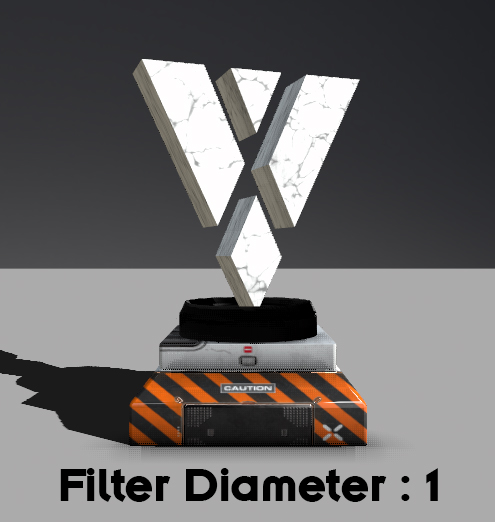

    This lists all properties that are present on all types of Depth of Field shaders:

    Instead of an enumeration you can control the Sampling Quality of the Quality Depth of Field using a floating point number between 0 and 1. The effect of the property stays the same.

    Quality DoF:

    This lists all properties on the simple Quality Depth of Field:

    Fast and Quality Advanced DoF:

    Following is a list of the common properties of Fast Depth of Field and Quality Depth of Field Advanced:

    Bloom

    A Bloom effect is similar to a Glare IPP effect but with two differences: it takes into account the 3D information of the objects and it is processed in 16-bits. These are the properties available:

    Imagebased Lens Flare

    This is a texture-based effect for producing lens flares and lens effects. The lens flares it produces are different to many of the effects one might see in a lens flare plugin or a visual effects package. They are calculated automatically based on information in the scene, rather than placed manually. Thus it is necessary to tweak the values and use good flare textures. The advantage, however, is that regardless of the scene action, the flares will behave. We provide two different Presets: default and clean. default fills the texture slots already with engine internal sample textures, while clean has all texture slots empty.

    Anti Aliasing

    The term generally refers to the process of removing jagged edges of objects. They may appear because of the limited raster of pixels on the render output. There are several techniques to reduce the aliasing, like ​Multi Sampling or ​Fast Approximate Anti Aliasing. For more information see the different sampling methods we support in Ventuz that are explained in detail here.

    On the 3D Layer Root, you can change the Anti-Aliasing either to use the configured options of the Device Configuration or to use a dedicated sampling method.

    Depth Keyer

    The Depth Keyer can be used to key out certain portions of the rendering of the 3D Layer based on the the depth. This is useful if you need to feed in any kind of image that has no alpha yet you need to composite it in your scene. An example for such images is the texture coming from the Unreal Live Link.

    The Depth defines the threshold of this keyer: everything behind this threshold is keyed out, while everything in front is left in the rendering as it is. When Apply to Fill is disabled the keyer applies to the layer's alpha channel only and leaves its color channels as they are. This is useful for Augmented Reality setups with any sorts of external chroma keying. Show offers debug visuals to get an idea of what is happening inside the shader. You can see the resulting Key as well as the scene's depth. Softness, Choke and Edge Softness work in the same way as the according properties on the Color Difference Keyer Layer Effect. When Enable Anti Alias is turned on, the effect will have aliased edges to smooth out the Alpha. With this disabled, the resulting key is either 0 or 1 - an FXAA algorithm is used to fade this smoothly when its enabled. The Fxaa Sub Pixel property changes this algorithm's parameter as described in the Anti Aliasing reference page.

    3D Property

    To create a Screen Space for resolution sensitive setups you can set the Relation Area to Layer so that the Aspect of your Elements will be preserved. You can then set the XY Relation to whatever reference you want for your Screen Space.

    HDR

    SDR Workflow

    This section describes working with a HDR layer in a SDR workflow, when the HDR flag is not set in the Project Properties.

    With the Engine drop-down menu you can switch to High Dynamic Range. If you are working with the HDR Engine the 3D Layer Root will show different properties than for the Standard Engine. The Engine will then switch internally into a 16bit floating point precision which makes it possible to make proper use of real HDRi's (High Dynamic Range images).

    You will mostly notice an advantage working in HDR when using real HDRi's or especially when working with the IPP-Effects like Bloom and Image based Lensflares. These Effects will then work properly since real bright pixels are available for sampling and applying the named effects.

    Unfold or Right Click the Engine property to show HDR specific properties. You can adjust the Exposure level then, which is basically the same like with a real photo camera. High Exposure (plus values) settings will let more light into the camera lens and the scene looks brighter. Low Exposure (minus values) will let less light travel trough the camera lens, the scene will be darkened. Since we are working in 16f it is now possible to reduce the color banding by enabling the Dither. FrustumCulling works the same way as in the Standard Engine mode.

    Another Property group called ToneMapping is now available. In the drop-down menu you can switch between Reinhard, Linear and Filmic tonemapping. The default Reinhard tone mapping lets you adjust the Whitepoint which sets the luminance level to use as the upper end of a tone mapping curve. The Whitepoint is mostly adjusted by artists to create a more colorful result. Linear and Filmic have no properties to change since they are based on fixed internal formulas, except for the PreserverAlpha. Linear renders really linear colors from 0 to infinity, while our monitor use colors at gamma around 2.2 from 0 to 1. When using the Filmic tone mapping, it happens that in the real world the Film itself is not capable of capturing the whole intensities, it uses a characteristic curve, it does not capture the intensities linearly. Film tone mapping, therefore, is an artistic tone mapper which emulates the natural film. There is a real advantage when using the Filmic Curve: You have Crisp blacks, a saturated dark end and nice highlights.

    For all Tonemapping modes you can adjust the PreserverAlpha with a drop down menu. This defines what happens with the HDR-Layer when it uses alpha to blend over another layer. DiscardAdditive clips everything that is brighter than the alpha would allow it. This mode is used when you have mostly opaque objects. SeperateAdditive is the same as DiscardAdditive but allows additive post effects like the bloom and image based lens flare. Use Passtrough when you have a lot of specular reflections and transparency, it reproduces accurately additive reflections and effects. It might result in wrong alpha blending around object edges. MergeAdditive compromises between alpha and additive and reproduces both but makes color and highlights darker and saturated. This adjusts your materials: do not use it when your layer will be fully opaque since the other modes do not change the colors.

    HDR Workflow

    If the whole engine is switched to HDR mode via the Project Properties, the properties for tone mapping are disabled, since there is no tone mapping before the blending stage with other layers. The HDR Layer calculates in the same way as in SDR workflow with 16-bit float. See HDR in Ventuz for more general information, the How To Use the HDR Layer and for playing out an HDR signal: How To Enable HDR output

    See also:

    « Previous:
    » Index «
    Next: »
