Nodes and Bindings
Nodes are the fundamental elements from which a Ventuz Scene is constructed. Each node is either a Content or Hierarchy node and thus belongs either in the Content Editor or Hierarchy Editor. This is visualized by the orientation of the brackets around the node icon.
A hierarchy node has brackets horizontally, a content node vertically around the node icon.
A content node describes an asset (i.e. a texture, an XML file, ...), a numeric constant, an event or any other item that does not directly influence the rendering process. In contrast, a hierarchy node is like an instruction to the Ventuz Rendering Engine, for example to activate a certain material or texture, to render a mesh and so forth.
All nodes can be browsed via one of the Toolboxes. These can be accessed either through the toolbox window (accessible via View/Toolbox in the menu bar) or by clicking into the Hierarchy Editor or Content Editor and then pressing Space key to open the Fast Toolbox.
Properties and Bindings
Each node has a number of Input Properties that are parameters which affect the nodes behavior (i.e. the size of a Rectangle or the speed a video is played). A node can also have a number of Output Properties that can be used to feed the input properties of other nodes. This is done via Bindings.
As long as an Input property is bound, it will update its value whenever the Output property of the bound node changes. For example, the X-Rotation property of a Axis node can be bound to a Mover node to continuously have objects under the Axis rotate around the X-axis. Binding of node properties is at the heart of Ventuz and allows the creation of very complex logic without having to program a single line of code.

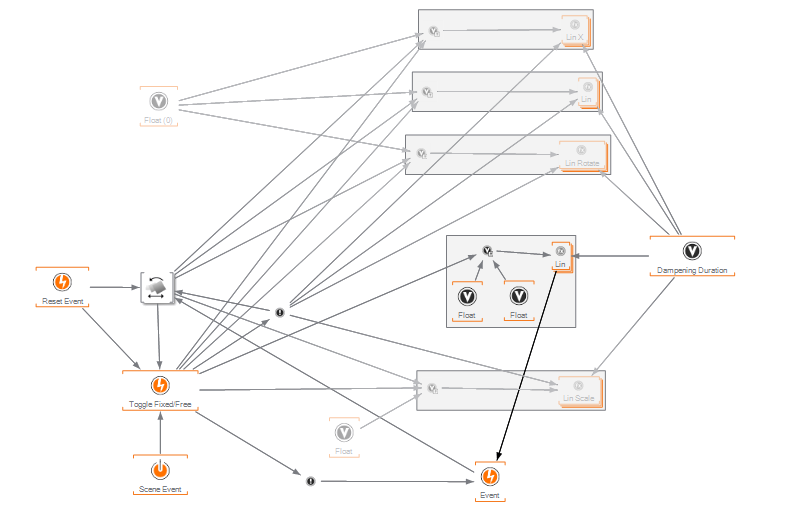

Bindings are visualized as arrows which connect nodes in the Content Editor. To create a binding, select a node, go to the Properties Editor and drag the input property onto another node. When released, Ventuz will open up a list of compatible output properties of that second node. Upon choosing one of the properties, a connection is created and visualized by an arrow going from the output node to the input node. For more information, see Property Editor.
For some nodes like the Keyframe Animation, dropping a property can have a different effect than just binding the property. For these nodes, drag the property to the target node and wait until the Property Editor switches to the new node. Continue dragging the property over the Outputs button, waiting and then releasing on the specific output property.
A binding can be removed by clicking on the arrow that represents the binding. A list of all bindings will appear and by clicking any of the crosses, the respective binding will be removed.
Validation and Rendering
What makes Ventuz unique is that a scene is not a static or linearly animated collection of assets but a flexible construct. As input changes, geometries are moved or scaled, materials changed, animations played or stopped, certain areas become responsive to touch and others ignore it. To handle all of this in realtime, the amount of processing has to be reduced to the absolute required minimum.
Ventuz uses a two-step approach, first validating each node to ensure that its values have been updated and only once all nodes are valid, rendering is performed in a second step. During validation, a node uses the values of its input properties to drive the internal functional implementation, thus updating the values of its output properties and/or data used during rendering. For example, a Rectangle Node might recreate its mesh as the tessellation level changes or an Expression Node might calculate its new output value based on a changed input.
To do all of this in an efficient manner, each node stores its validation state. If the output property of a node changes its value, all nodes bound to that output get invalidated. If none of the bound outputs changes and neither does the user change an input property by hand, there is no reason to re-validate the node.
In most cases however, the user luckily does not have to worry about any part of this. Ventuz will utilize all means available to it in order to update the scene as fast as possible, making it ready to render the next frame.
