Image Converters
Table of Contents
 | Image to Texture | This node converts images into the DirectX texture format (Direct Draw Surface). |
 | Image to BumpMap | This node converts images into a bump map texture. |
 | Images to CubeTexture | This node converts a bundle of six images into a cube texture. |
Image to Texture
This node converts an image (ImageSource) (e.g. coming from an Image Loader node) to a texture (Texture) which can be used by the Texture node. This conversion is necessary because DirectX needs image information in a specific format (Direct Draw Surface or DDS). The Levels property defines the number of MipMap levels that have to be generated during the conversion. If this property is set to 0, all possible MipMap level will be generated. The resulting number of levels however depends on the size of the image. Level values greater zero indicate the required number of MipMap levels. If the property Resize is activated the original image will be additionally resized to a power of 2 image size (...,64, 128, 256, 512,...). This scaling is necessary because older graphics cards require textures with these dimensions to map them correctly on geometries. The property Size defines if the image should be scaled down or scaled up. Possible values for this property are:
| Auto | The image is scaled to the closer power of two size if required by the graphics card. |
| ToUpper | The image is scaled up. |
| ToLower | The image is scaled down. |
Image to BumpMap

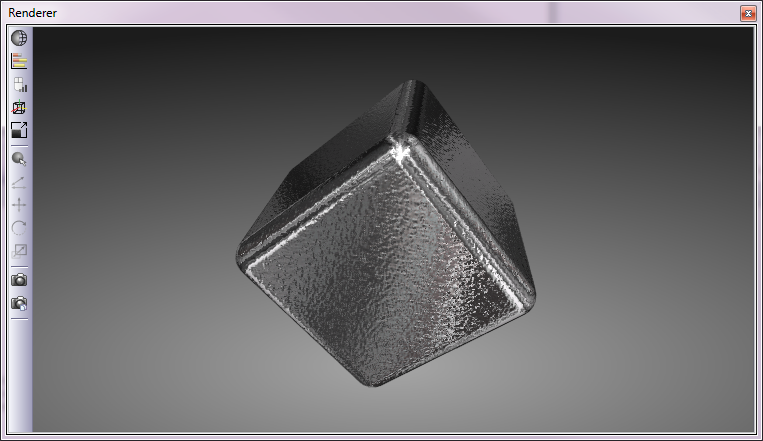

The Image to BumpMap converts an image to a texture which contains a kind of height information to create bumpy surface structures. The height information is obtained by analyzing the contrasts in the source image.
The Luma property indicates if an additional luminance value should be included in the resulting texture. Note this feature is not available on all graphics cards.
If the property Resize is activated the original image will be additionally resized to a power of two image size (...,64, 128, 256, 512,...). This scaling is necessary because older graphics cards require textures with these dimensions to map them correctly on geometries. The property Size defines if the image should be scaled down or scaled up. Possible values for this property are:
| Auto | The image is scaled to the closer power of two size if required by the graphics card. |
| ToUpper | The image is scaled up. |
| ToLower | The image is scaled down. |
Images to CubeTexture

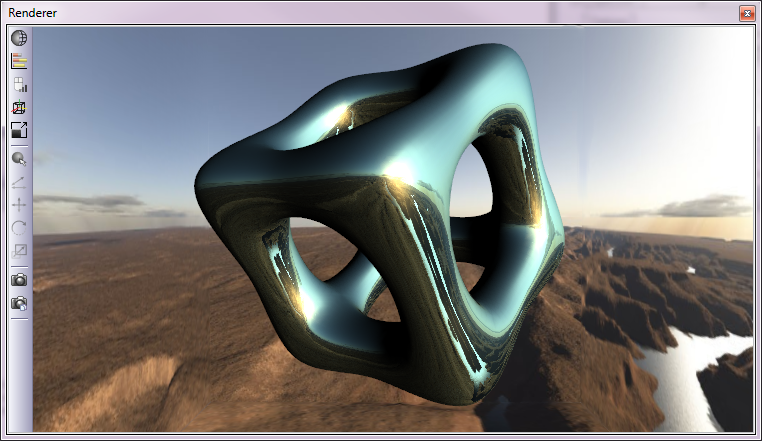

This node takes six images as inputs and creates a cube texture which is need for environmental texture mapping. For example the SimpleReflection shader needs such a texture to work at all. The six images have to represent the view of the six base directions from the center of the object on which the cube texture should be applied. E.g. ImagesPosX must be the image of the view in the positive X direction. The property Size defines the edge length of the resulting texture cube.
